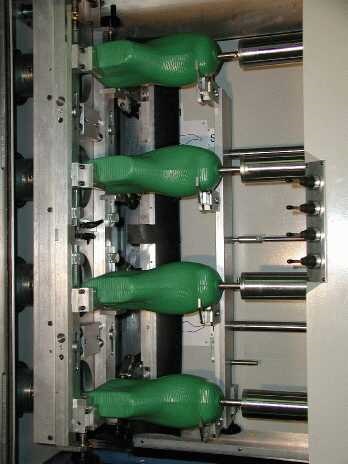

The machine PALSER Art.190 is a turning machine that executes the roughing of plastic blocks at a very high speed (around 100 rpm).
Thanks to its high quality mechanics, it is able to execute the working in very reduced times and with levels of quality considerably superior to traditional machines.
The machine is able to work all files in ISO format, that can be supplied either from PALSER Art.105 Digitizer or from a workstation CAD/CAM .

PALSER Art.190 works two pair of plastic blocks at the same time and it reaches very high productions .
It is supplied with a special vice’s group that helps in loading and unloading of the pieces, so that the work became simpler and productivity increase.

TECHNICAL CHARACTERISTICS

Multiprocessor numerical control with high performance, network board, floppy drive, monitor-color, alphanumerical panel of control.
Digital motors with high performance, SERCOS interface for maximum precision and working speed.
Movement hydraulic of tailstock's auxiliary units; variable range pump.
Electronic control: PLC InterBUS-S with indelible memory.
Electrical System: power 220/380v 50HZ with safety devices according to laws in force.
Dimensions: 2300x1700x2300 mm.
Weight: 5000 Kg.
